Description

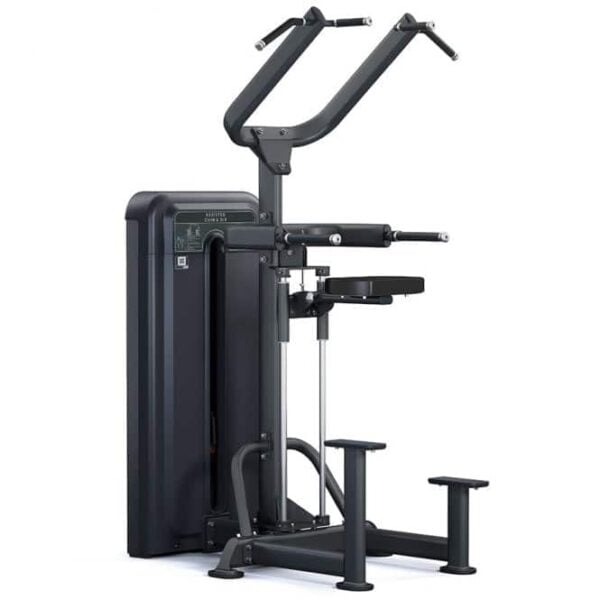

The versatile and adaptive, Pulse Fitness dual-function Assisted Chin & Dip is ultra-smooth and quiet thanks to its precision polished guide rods and linear bearings, both easy to use whilst being bio-mechanically efficient. The counterbalanced, folding knee pad allows users both weight assisted and full body workouts. Repositionable dip handles allow focus on either wide and narrow dips. Whilst multiple pull-up handles are angled to reduce stress on the wrist. Dual height foot platforms have been positioned ideally for a user’s safety and user convenience.
About Pulse Fitness Weight Stack Strength machines:
Frame Construction:Â All Pulse Fitness products are constructed from durable steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Frame Protection:Â Once welded, the frames are treated against corrosion by being grit blasted (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powder-coated twice, which ensures maximum adhesion and coating thickness. This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.
Magnetic Weight Stack Pins:Â The pins provide positive locking into the weight plates and are secured to the weight stack via a plastic-coated tether cable. The pins cannot be removed from the machines.
Weight Plates:Â The cast and machined solid-steel weight plates are 15mm (0.6in) thick, 5kg (11lb), with precision fitted self-lubricating nylon bushes. This is to ensure smooth travel on the guide rods which are 20mm (0.8in) in diameter, made from steel, precision centreless ground, polished with corrosion-resistant chrome plating for a smooth operation and rust retardation.
Smooth Operation:Â Pulse Fitness strength products are renowned for their smoothness of operation. This results from Pulse Fitness’ precision-engineered transmission system and weight stack tower assembly, which reduces the coefficient of friction and significantly cuts maintenance costs.
Belt Transmission:Â An ultra-modern manufacturing process is required to produce the open-ended steel-reinforced PU-flat belt. This transmission system is constructed from a modified polyurethane which is lightweight, extremely flexible, has a high strength co-efficient which is both hard-wearing and durable. It’s virtually corrosion-proof design is due to its metal cores being enclosed within a polyurethane shield.
Hand Grips:Â The hand-grips are formed from a slip-resistant, extruded rubber compound that is non-absorbing and wear-and-tear resistant. They are 35mm (1.4in) diameter. Encompassing the hand-grips are the machined and highly durable aluminium end-caps.
Range of Motion:Â All machines within the range have a full and natural range of motion, which increases flexibility and enhances the muscle’s ability to perform.
Graphic Information Panel:Â The graphic information panel is designed to show an easy-to-follow, simple step-bystep pictorial instructions. These illustrate the machines setup, the correct operating procedure, user start and finish positions and which identify which muscle groups will be trained during the work-out.
Features:
- Multiple start positions
- Single hand start position adjustment lever
- Variable resistance cam
- Seat with modular back support
- Dual footrests
- 77kg and 100kg weight stack options
- Raised iconography on key adjustments
- Colour coded adjustments
- Large, easy-grip weight selector pin
- Easy-read instruction placards
- Neoprene handles with aluminium rings
- Low profile design
- Fully enclosed weight stack
- Steel-reinforced belt and pulley system
- Anti-slip belt clamps
- Floor fixing points
Specification:
Length: 1165mm / 45.9in
Width: 1545mm / 60.8in
Height: 2200mm / 86.6in
Product Weight: 153kg / 337.3lb or 176kg / 388.0lb
Weight Stack: 77kg / 121.3lb or 100kg / 169.8lb
Maximum User Weight: 180kg / 396.8lb
Warranty: 2 Years, Rubberised materials 12 Months, Upholstery 6 Months.
