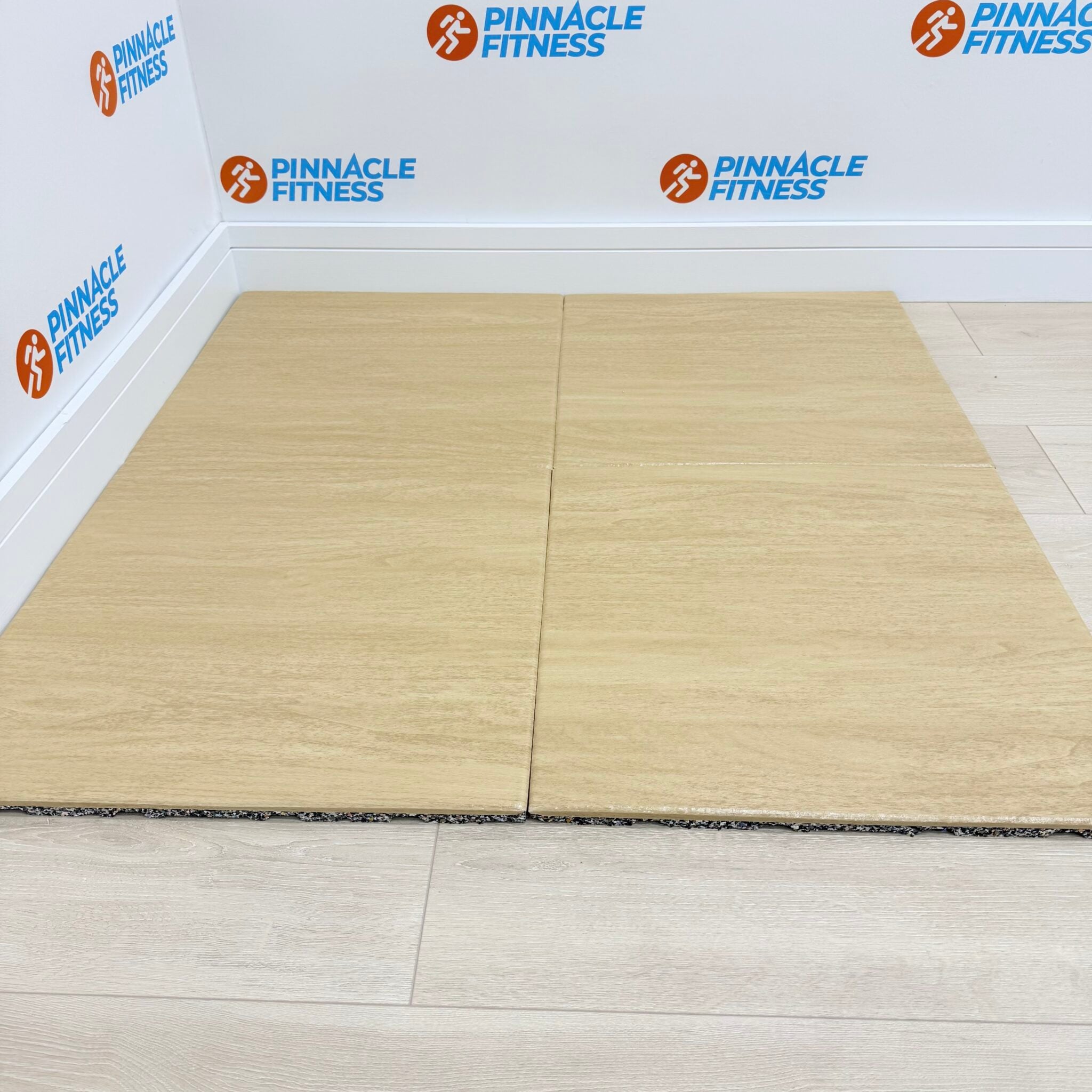

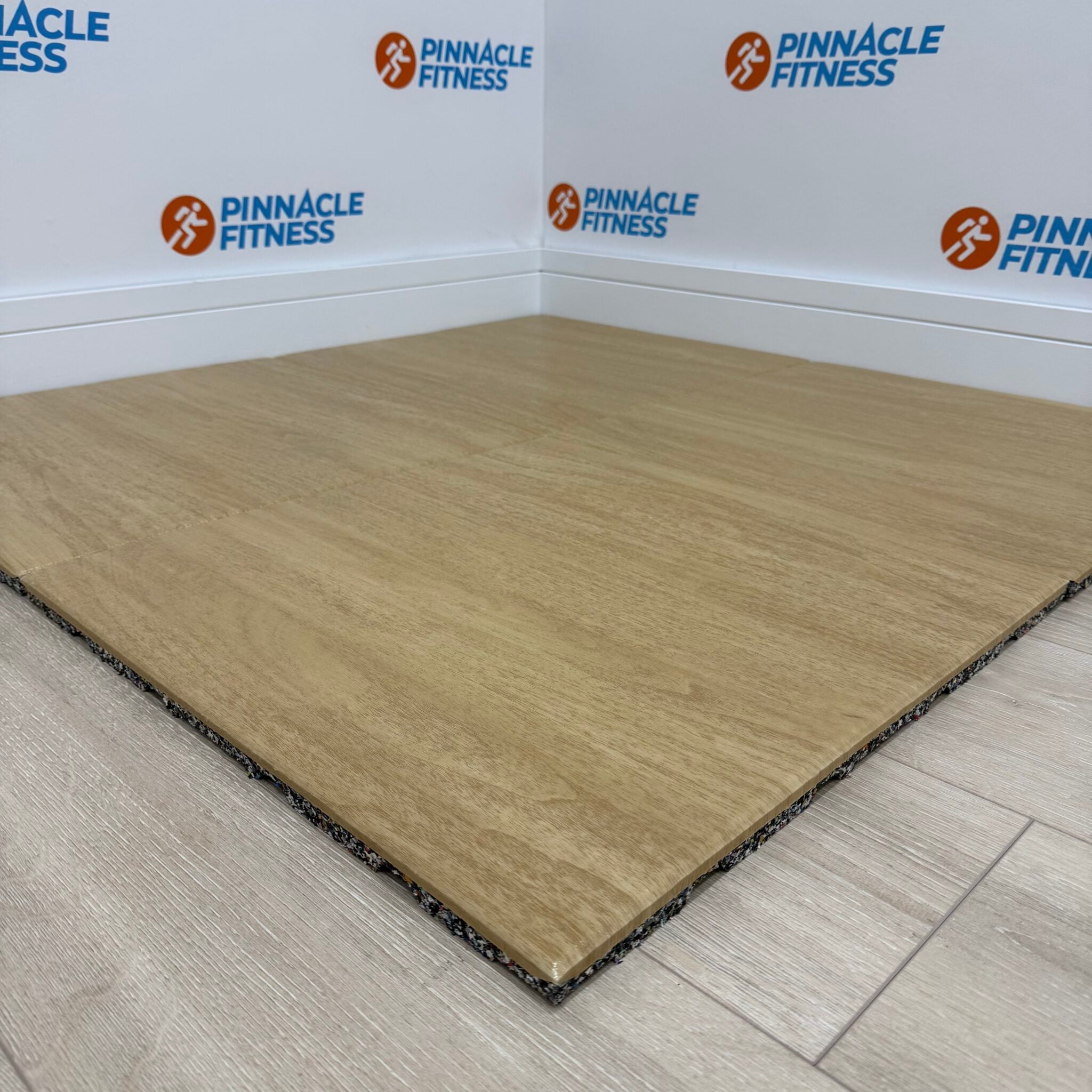

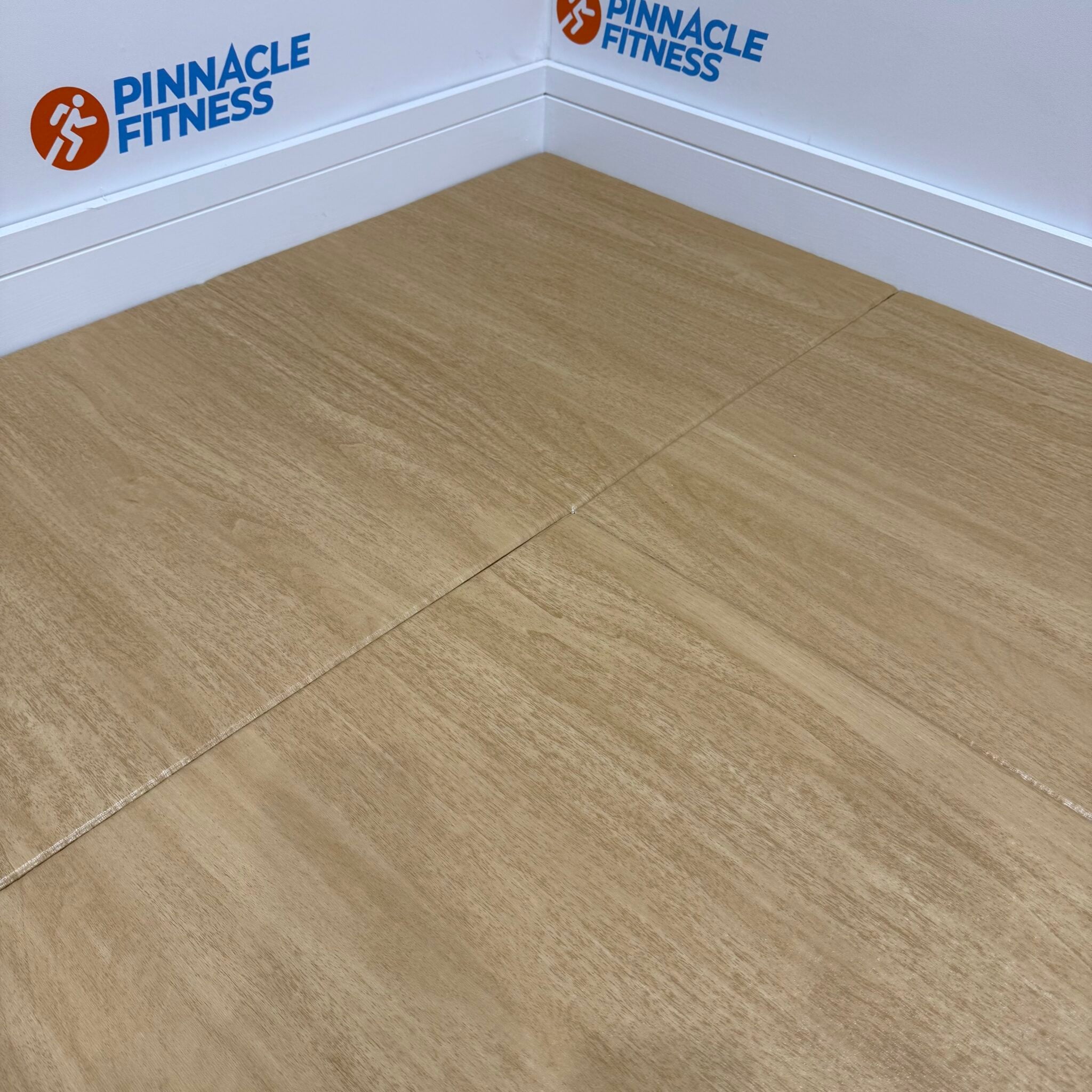

Part of our interlocking Blitz Flooring collection of premium gym mats, the Wood Effect tiles are the perfect combination of style and functionality.
The tiles feature a robust base layer of recycled rubber reinforced with a smooth, wood effect top fibre surface layer in pale Oak replicating the beauty of authentic wood in its detailed grain and natural wood characteristics.

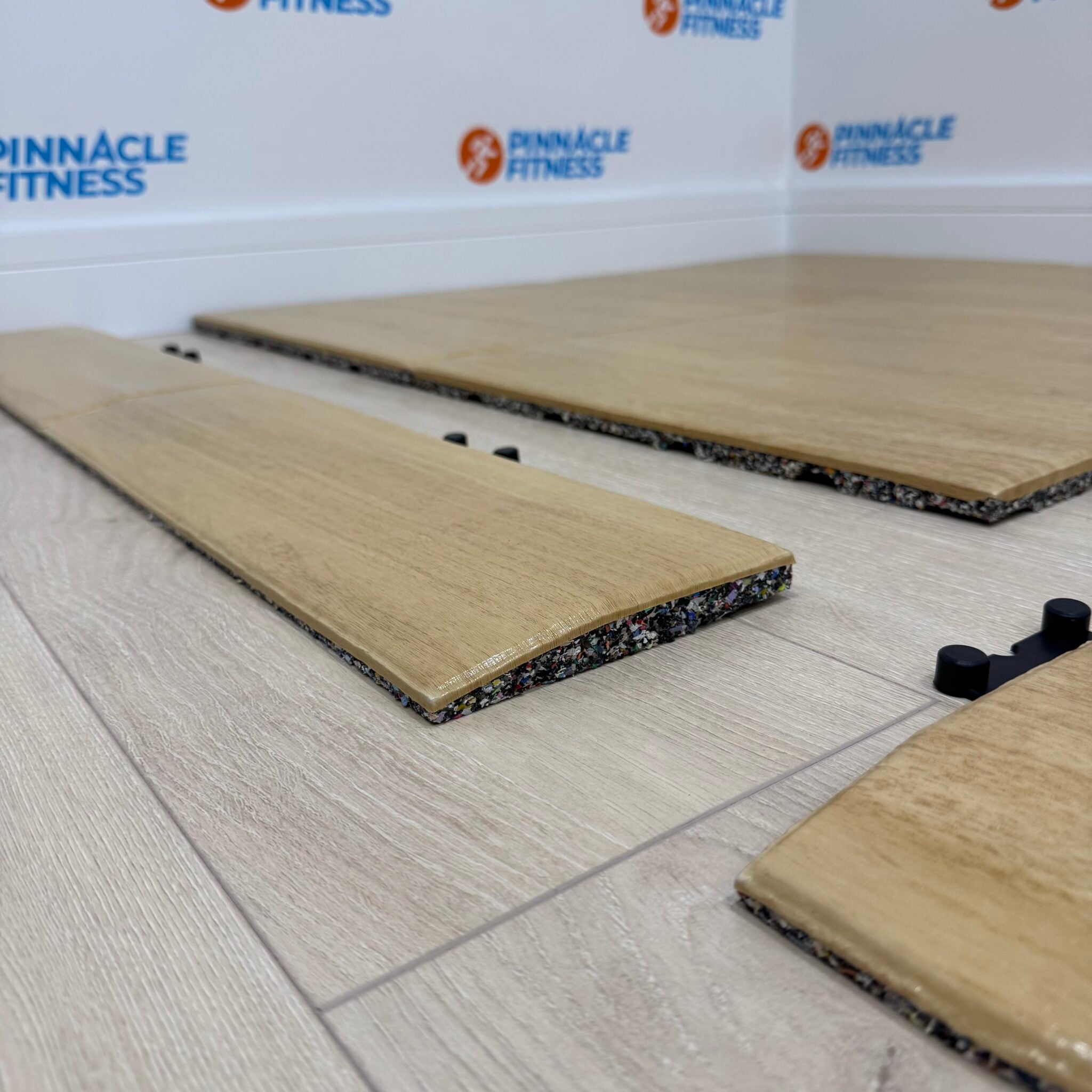

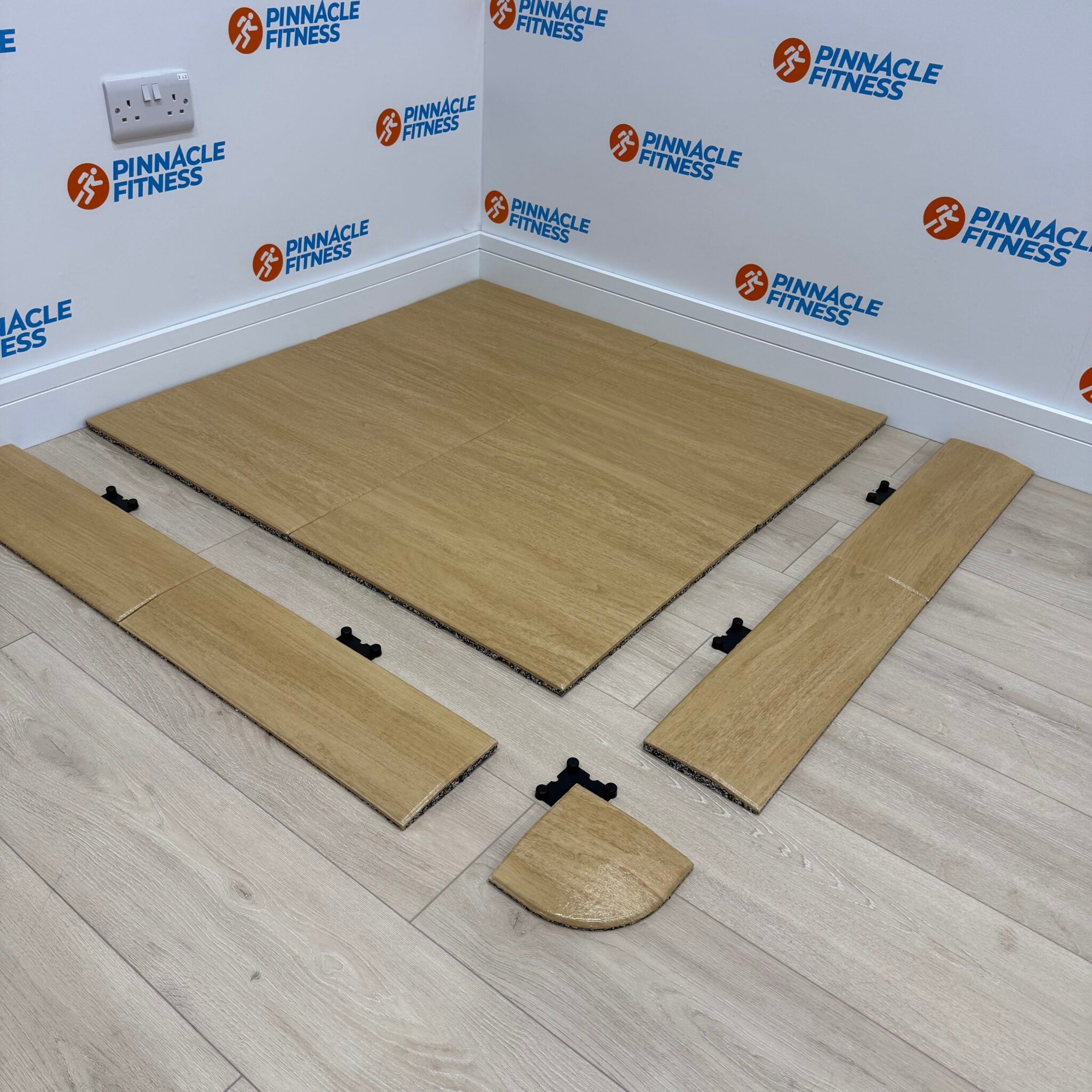

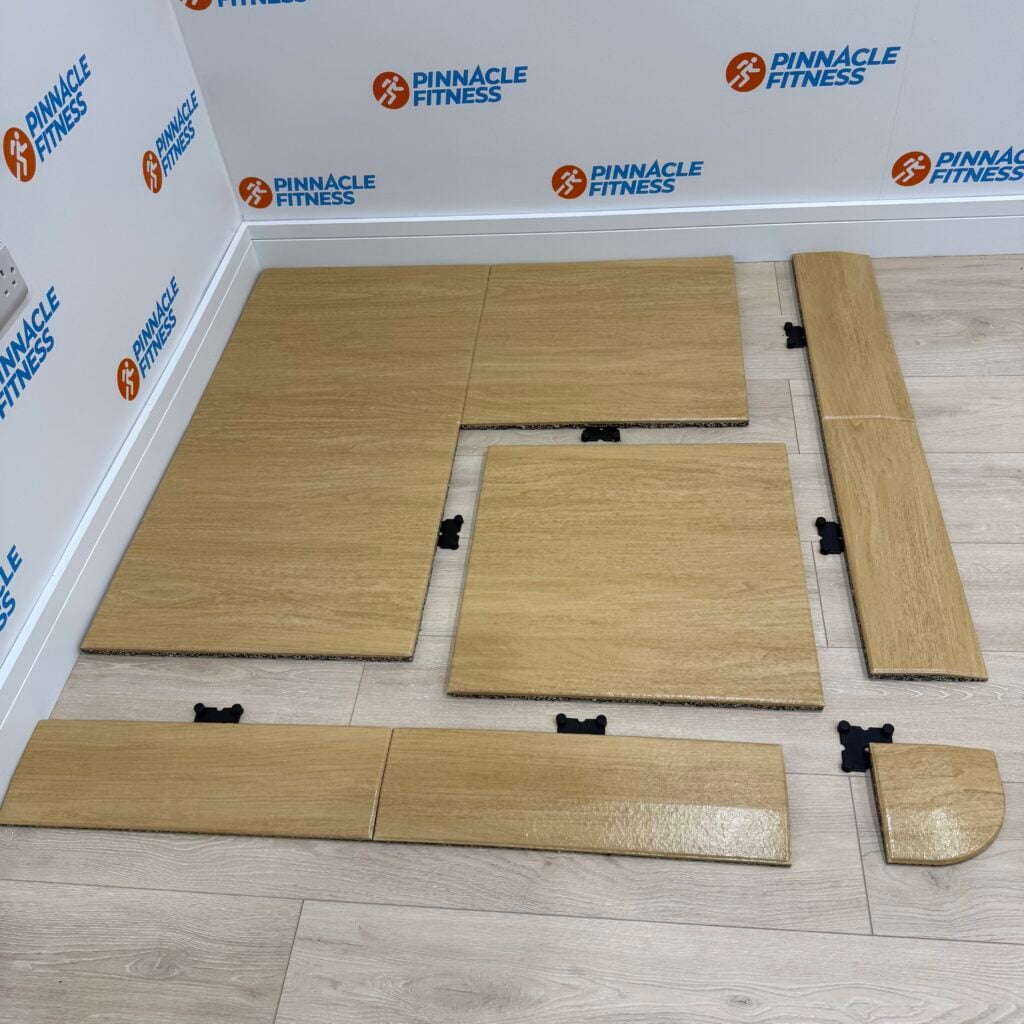

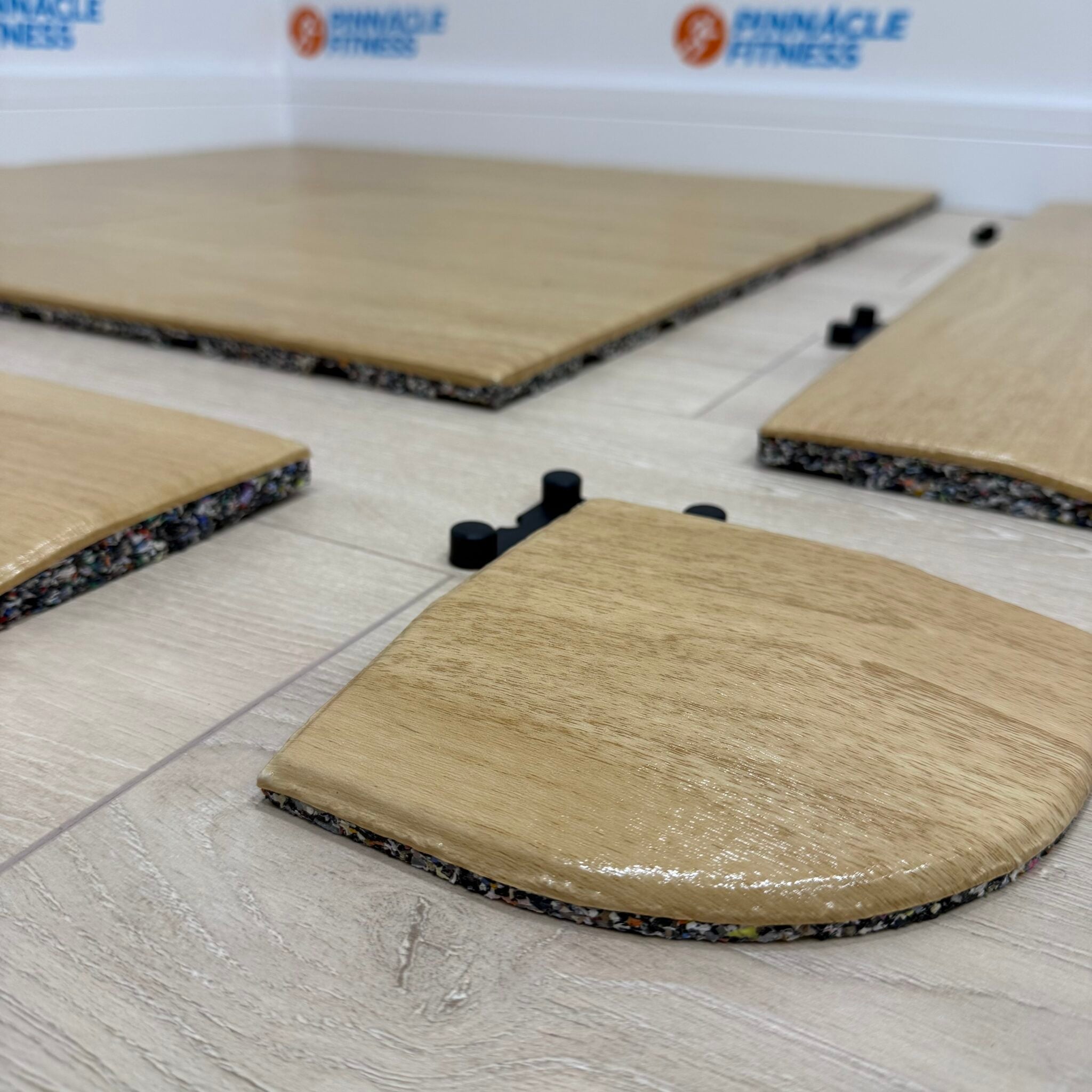

Matching edge ramps & corners available.
The tile comes in a versatile 20mm thick designed to withstand up to 140kg weights, supports all heavy equipment and a wide range of fitness activities including CrossFit, Circuit Training and HIIT.
Unlike cheaper alternatives, we only use Binder (adhesive) which allows for a low odour rubber.
Features
- Premium Quality: Part of the Blitz Flooring collection, offering a neutral, contemporary design with oak brown and beige tones.
- Superior Comfort & Performance: Smooth top layer for excellent shock absorption, balancing comfort and high performance for various fitness activities.
- Heavy-Duty Durability: 20mm thickness supports up to 140kg weight drops, ideal for CrossFit, HIIT and functional training.
- Easy Installation: Interlocking system with plastic connectors for a secure fit, with optional adhesive for permanent setups.
- Odour-Free & Safe: Uses odourless binder for a pleasant gym experience, with a 4-year guarantee against cracking and colour defects.
- Versatile Use: Suitable for heavy equipment, cardio, strength and conditioning activities. Compatible with all flooring requirements.
NOTE: FREE PLASTIC CONNECTOR PIECES COME WITH TILES
Tile Dimensions: 500mm x 500mm
Ramp Dimensions:Â 250mm x 500mm
Corner Dimensions:Â 250mm x 250mm
Shape: Square
Thickness: 20mm
Warranty: 1 Year
Applications
Commercial Gym, Home Fitness, PT Studio
Installation

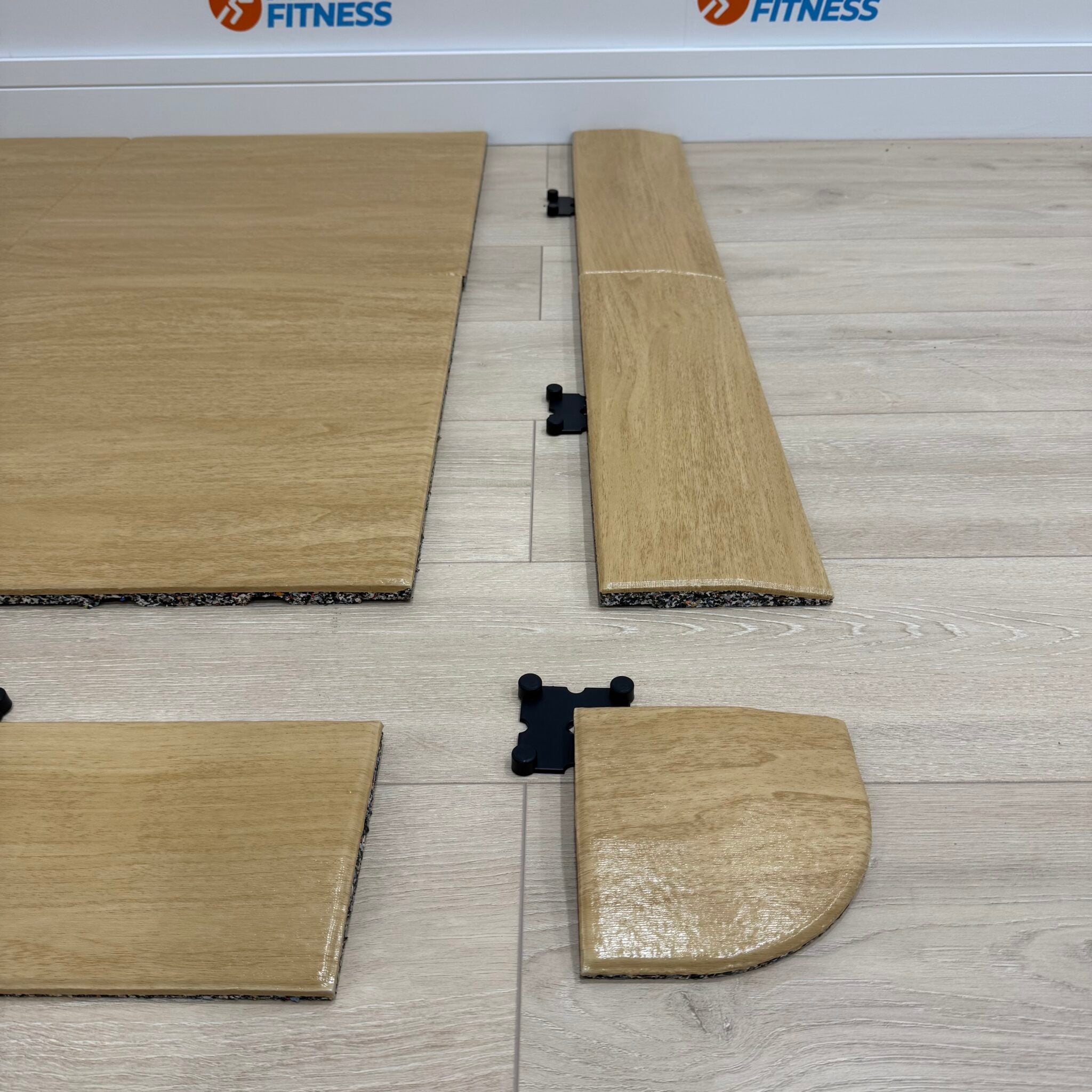

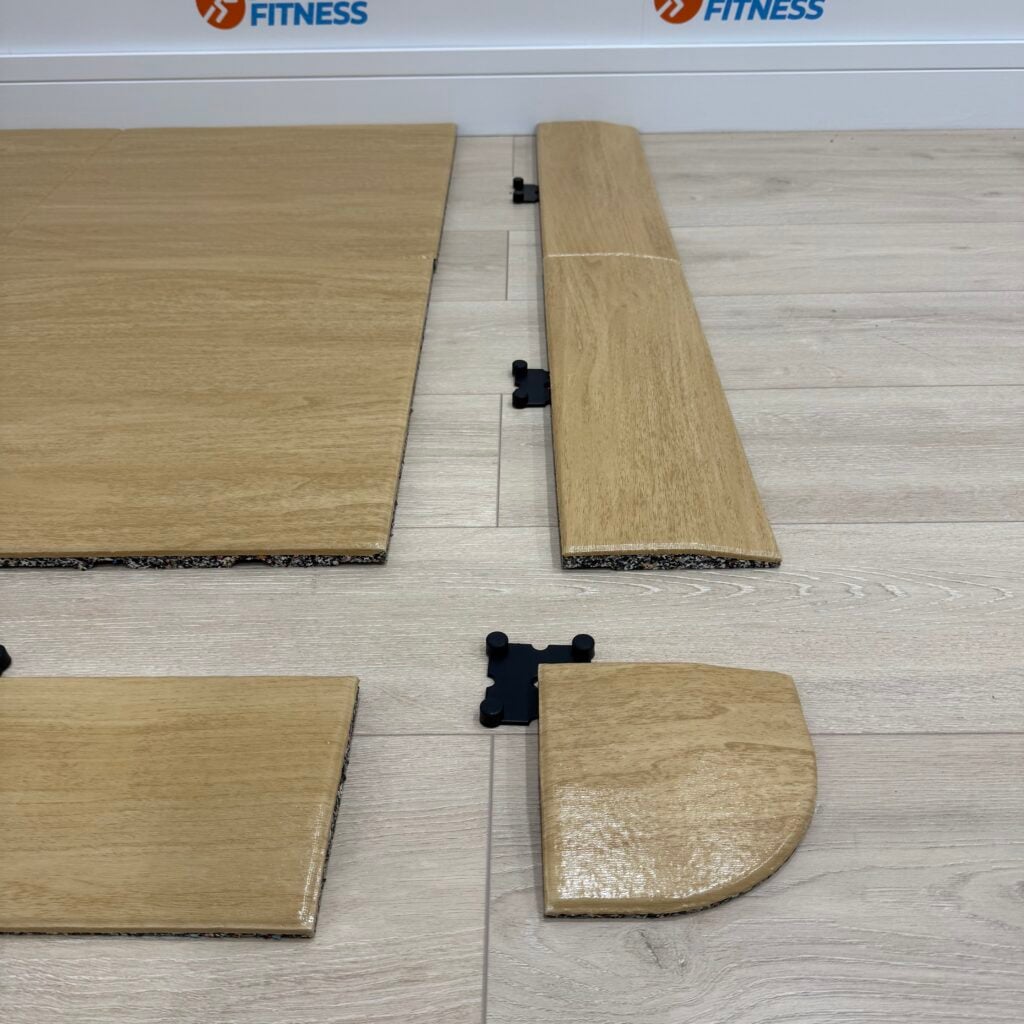

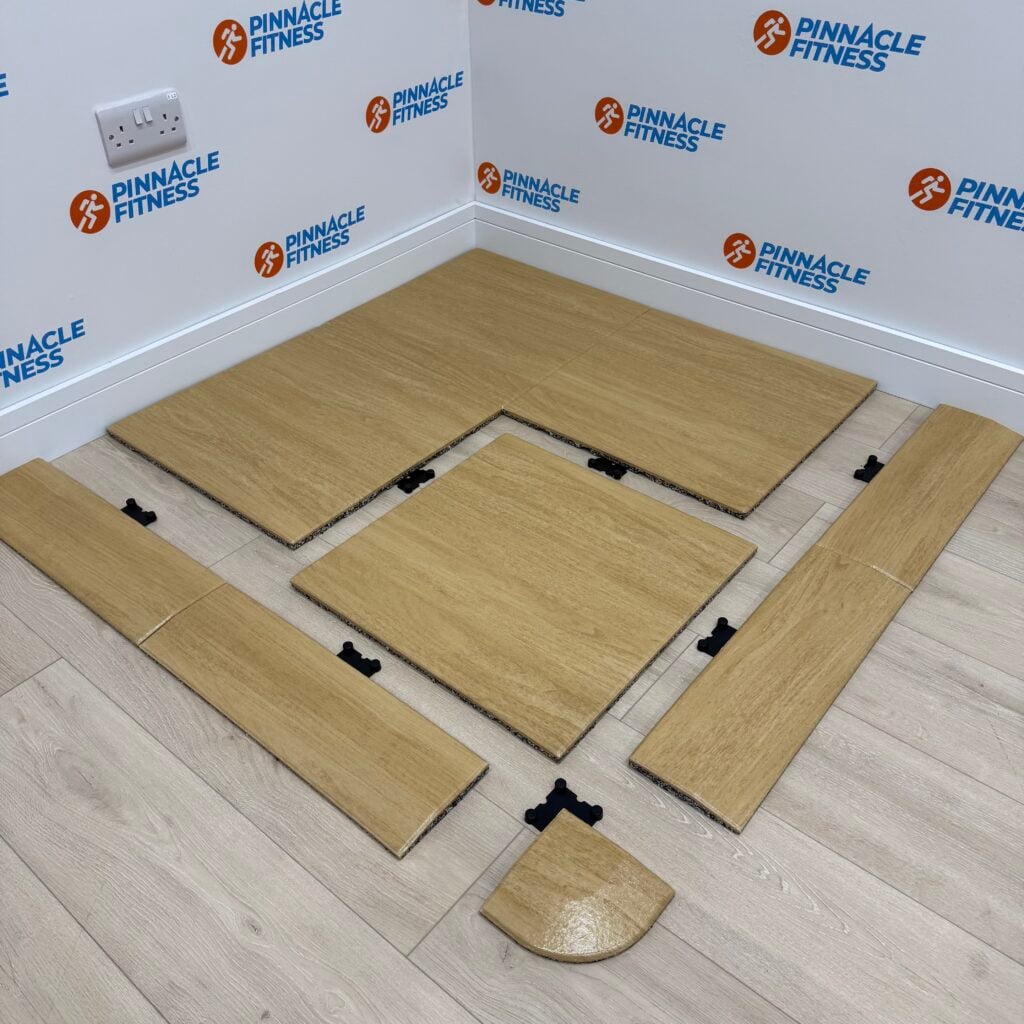

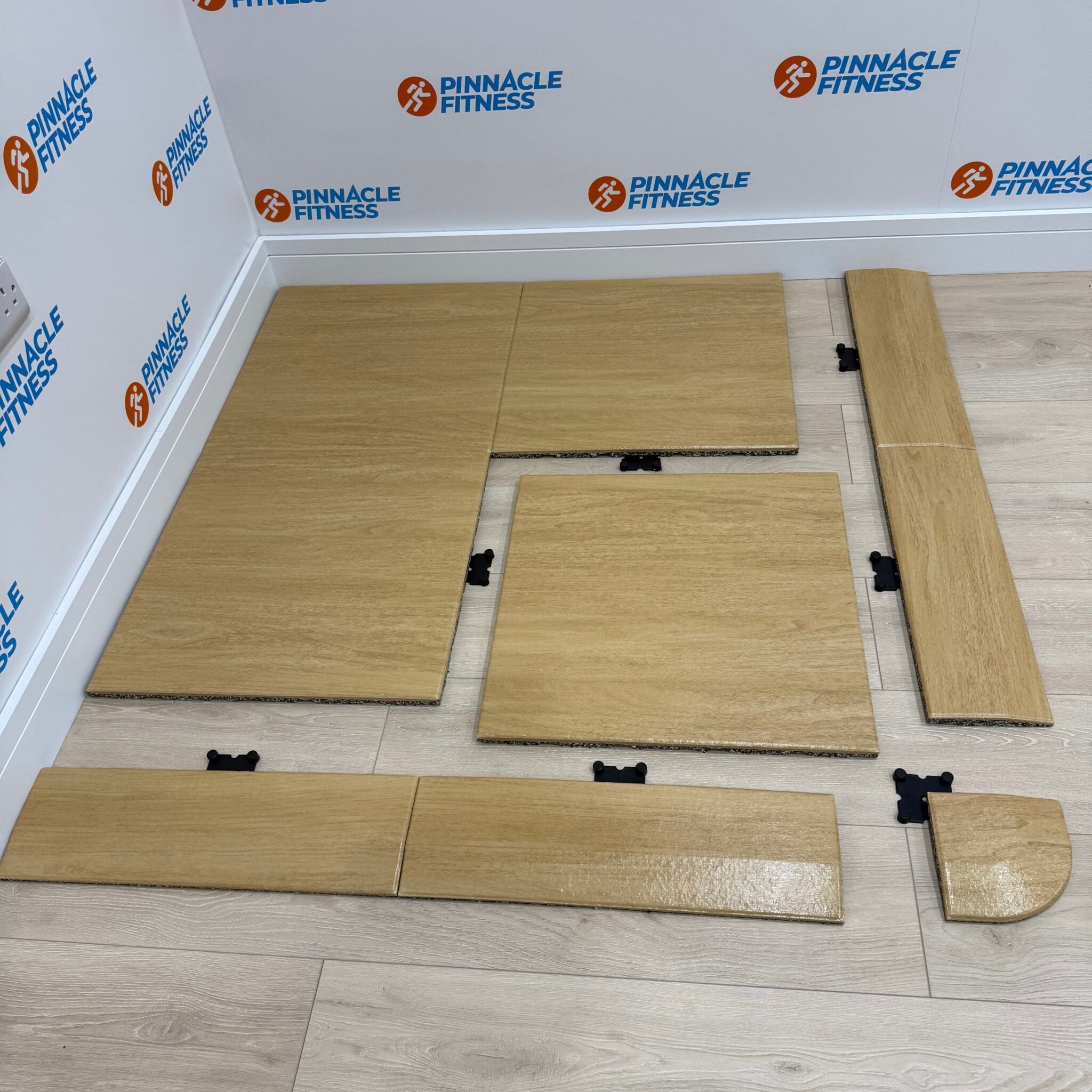

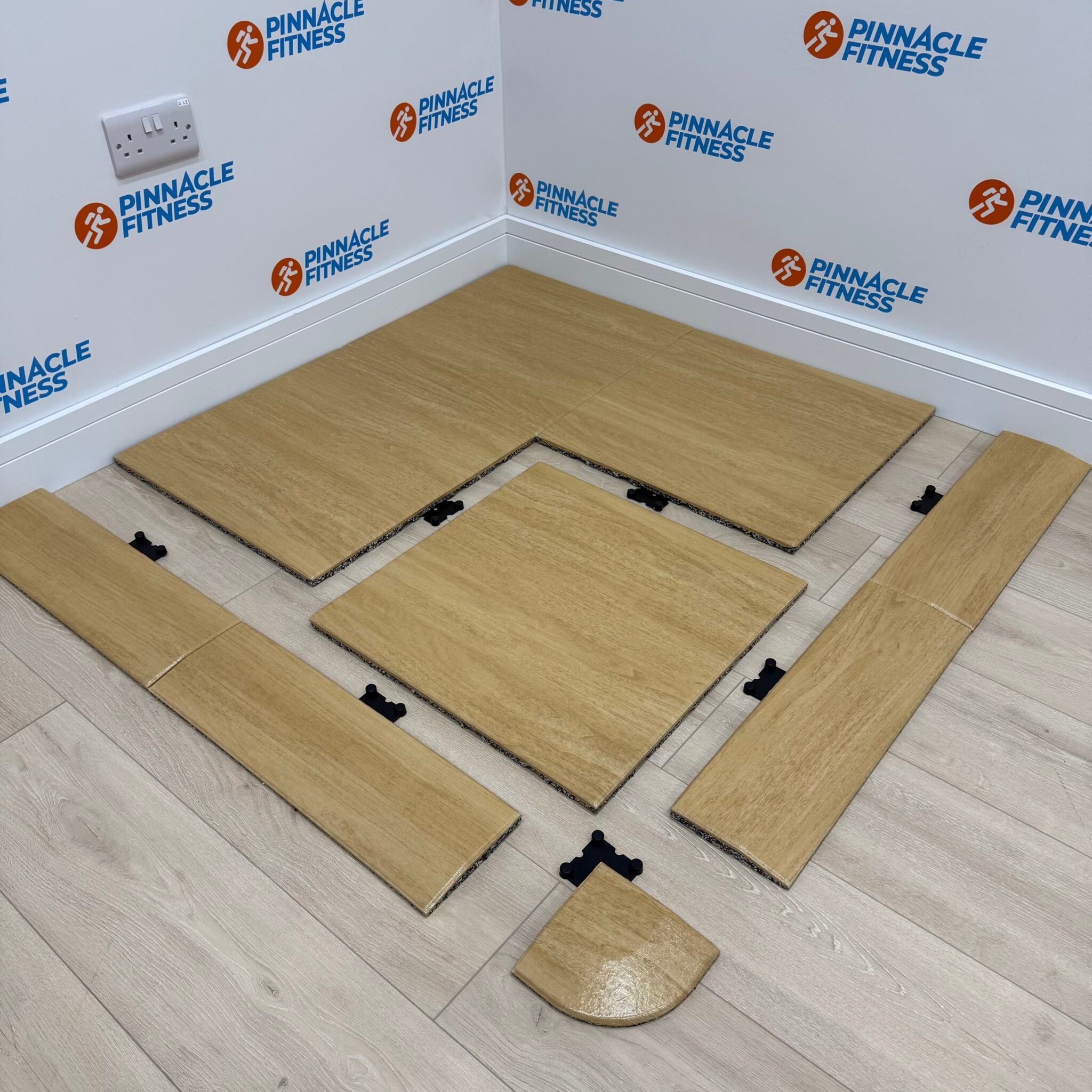

Connector pieces (hidden) are inserted underneath each tile to securely interlock them together, keeping them in place. The tiles can also be loose laid or glued using adhesive. The rubber can be cut to size using a Stanley knife.
Sub-floor
The sub-floor requires to be level, firm and dry.
| Product | |
|---|---|
| Dimensions | 500mm x 500mm |
| Thickness | 20mm |
| Colour | Oak Wood Effect |
| Shape | Square |
| Profile | Square Studded Underside with Holes for Connector Pieces |
| Installation | Plastic Connection System |
| Maximum Weight Drop | 140kg |
| Applications | Functional Training, Free Weights up to 140kg, Cardio & Strength, CrossFit |
| Material | |
|---|---|
| Composition | EPDM & SBR Recycled Rubber/Fibres |
| Technical Specification | |
|---|---|
| Width | + 4mm |
| Length | + 4mm |
| Thickness | + 2mm |
| Bulk Density Toplayer | Approx 1450kg/m3 |
| Bulk Density Sublayer | Approx 1000kg/m3 |
| Shock Absorption | 61% | EN 14808 |
| Head Injury Criteria (HIC) Test | 1.5m | EN 1177 |
| EU Fire Classification | E F1 |
| Vertical Deformation | 5mm | EN 14809 |
| Thermal Resistance | 0.16m2.K/W |
| Sound Insulation | 21dB Reduction |
